Wall Mount Garage Door Opener Installation in Murfreesboro, TN
A jackshaft opener mounts on the wall beside the torsion shaft and turns it directly, with no rail, chain or belt across the ceiling. Fitted and tested in one visit.
Wall mount garage door opener installation in Murfreesboro, TN costs $450 to $900 installed in consumer cost guides as of 2026, unit alone $280 to $750, and about $1,500 as a national dealer average. The opener is a jackshaft unit: a compact motor that bolts to the wall at one end of the torsion shaft and turns the shaft itself. No rail, no trolley, nothing on the ceiling.
That suits a garage where the ceiling is spoken for, the headroom is tight, or the door is taller than 7 feet. It needs a torsion spring door and clear wall beside the shaft, which we measure on the first visit. If the ceiling is free, a belt drive on a rail does the same job for less.
Request a Garage Door Repair Quote
Tell us what the door is doing, whether it is a single or a double, and the part of town you are in. Weekday requests get a reply the same working day, and the price is confirmed on site before any work starts.
What Comes With a Wall Mount Install
The unit, mounted and coupled to the shaft

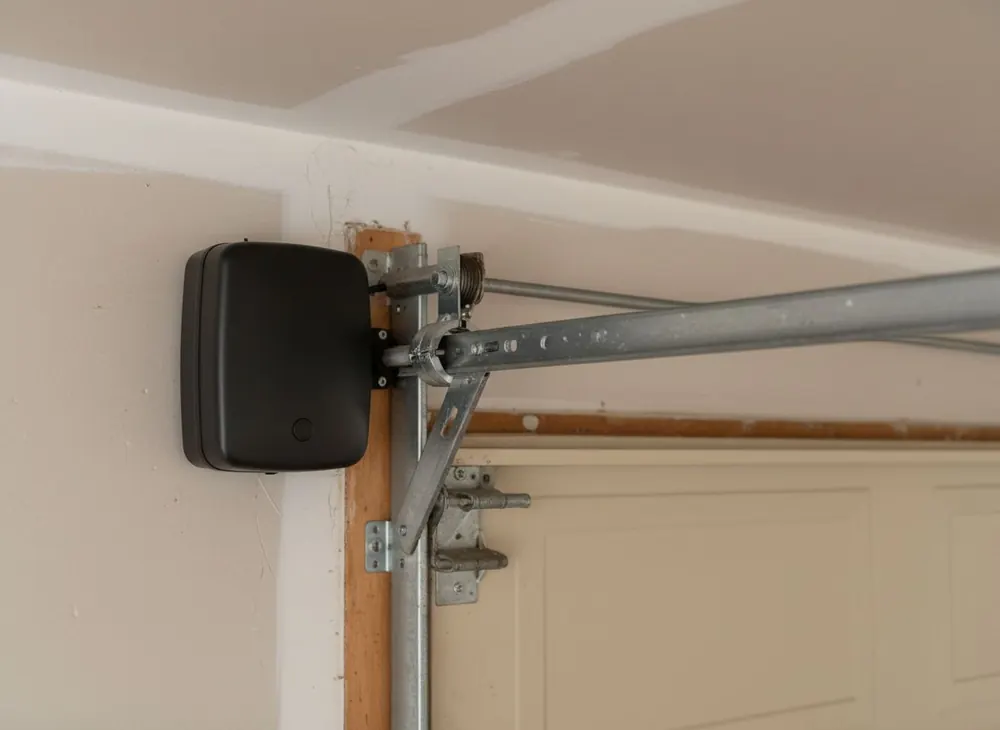

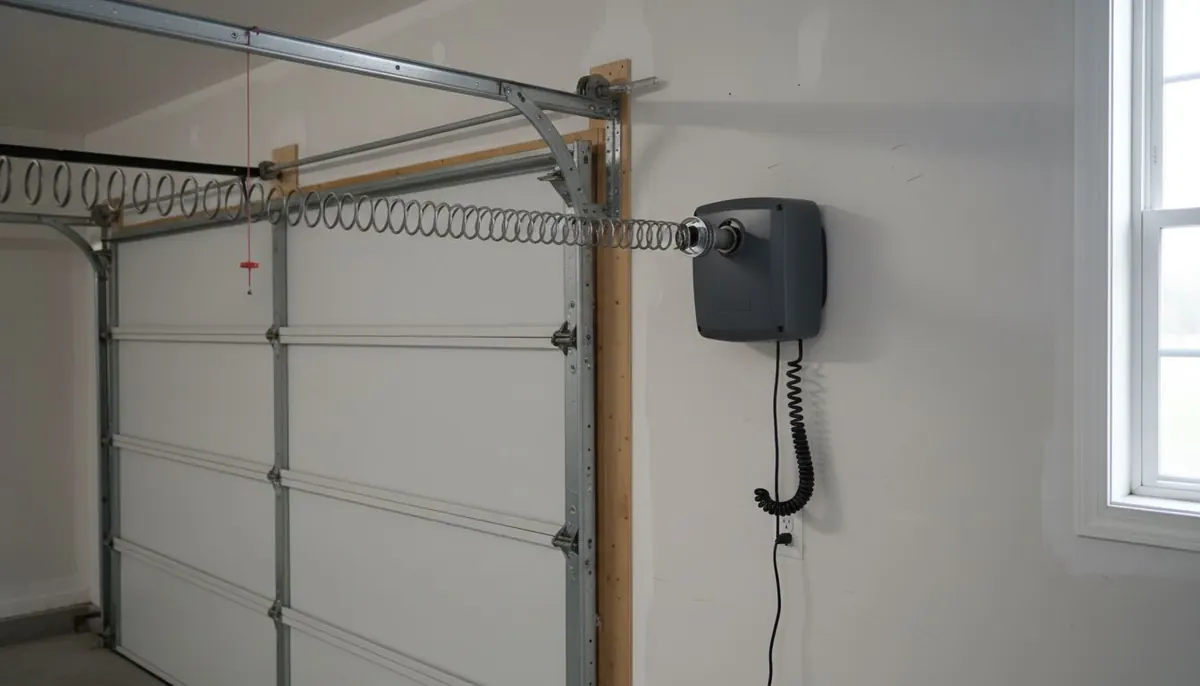

The jackshaft motor is fixed to the wall framing beside the end bearing plate and coupled to the torsion shaft. The old ceiling opener and its rail come down and go with us.
Door checked and balanced first
A jackshaft unit turns the same shaft the springs sit on, so the springs must be right. We lift the door by hand and confirm it holds at the midpoint before the unit goes on.
Safety sensors and the wall console
New photo eyes no higher than 6 inches off the floor, a lit wall console inside the garage, and remotes and any keypad paired before we leave.
Wall Mount Garage Door Opener vs Ceiling Mount
Both lift the same door to the same standard. The difference is where the motor sits.
Where the motor lives
A ceiling mount opener hangs from the joists and pulls a trolley along a rail. A wall mount opener sits on the side wall at shaft height and turns the torsion shaft, which winds the lift cables onto the drums, the same way the door moves when you lift it by hand.
Headroom and ceiling space
Standard 12 inch radius track needs 12 inches of headroom; 15 inch radius track needs 14.25 inches. A low headroom conversion brings that to about 9 inches with a front mount or 4.5 inches with a rear mount, where a rail-type opener struggles. A jackshaft unit needs none of it.
Noise, price and limits
With no rail bolted to the joists there is nothing overhead to rattle. The trade is cost: the jackshaft is the most expensive drive type, and it only works on a torsion spring door with usable side room. Chain is the cheapest at $300 to $650 installed, belt the quiet mid option at $350 to $850; see every drive type side by side.
The Visit, From Measuring the Shaft to the First Cycle
-
Measure side room, shaft and wall
We check which end of the torsion shaft has clear wall, how far the shaft extends past the end bearing plate, and what framing sits behind the drywall.
-
Remove the ceiling unit and balance the door
The old motor head, rail and angle iron come down. The door is lifted by hand and must hold at the midpoint. If it drifts, the springs are adjusted or replaced before anything else is fitted.
-
Mount, couple, wire
The unit is bolted to solid framing, coupled to the shaft, and plugged in. Photo eyes are set, the wall console mounted, and the emergency release fitted.
-
Set limits and run the federal tests
Limits are set so the door seals at the slab and stops cleanly at the top. Then the 2x4 contact test: reversal within 2 seconds. Then the beam test: break the photo eye while closing and the door must reverse. Both done in front of you.
Torsion Shaft, Side Room and the Standards the Unit Must Meet
Why it has to be a torsion door
Torsion springs sit on a steel shaft above the door and lift by twisting; a jackshaft opener simply adds a motor to that shaft. Extension springs run alongside the horizontal tracks and lift by stretching, with no shaft to grip. Converting to torsion runs $400 to $800 or more, and torsion springs last 7 to 15 years against 4 to 12 for extension.
Listed to UL 325, tested to 16 CFR 1211
IRC R309.4, in the 2018 code Murfreesboro adopted under Ordinance 18-O-71, requires automatic openers to be listed and labeled to UL 325. The federal rule in 16 CFR Part 1211 applies to every residential operator built from January 1, 1993 onward: the door must reverse within 2 seconds of contact with an obstruction, and the photo eye pair must reverse it when tripped.
Wall Mount Opener Cost Around Murfreesboro
Wall mount garage door opener installation: $450 to $900 consumer range, about $1,500 pro-installed average
The consumer band is from 2025 national cost guides; the $1,500 figure is a 2026 national dealer average for a pro-grade unit with battery backup and Wi-Fi.
| Scope | Typical range | What it covers |
|---|---|---|
| Jackshaft unit, existing outlet, torsion door balanced | $450 to $900 installed | Unit $280 to $750 plus labor $150 to $400. |
| Pro-grade unit with battery backup and app control | About $1,500 installed | Battery backup adds $50 to $150, Wi-Fi $100 to $450 to the unit price. |
| Wall mount plus torsion conversion | $850 to $1,700 and up | Adds the $400 to $800 or more extension-to-torsion conversion before the opener. |
What moves the price
- Side room: tight wall space beside the shaft may need the shaft extended or the mount moved.
- Power: a new outlet at the side wall adds the $100 City electrical permit plus the electrician.
- Springs: a door that will not hold at midpoint adds $150 to $350 for a pair of torsion springs.
A two-storey house in the Blackman area with the garage ceiling about to become a storage platform. Torsion door, balances fine, outlet already on the side wall. The ceiling unit comes down and a LiftMaster jackshaft with battery backup goes beside the shaft. The total sits between the $900 top of the consumer range and the $1,500 dealer average.
Why Choose Us for a Jackshaft Opener
We say no when the door is wrong for it
An extension spring door or a wall with no room beside the shaft gets a straight answer and a cheaper alternative.
Shaft and springs checked, not assumed
Because the motor turns the spring shaft, worn springs or a bent shaft show up as a bad install. We check both first.
Written price with the permit question answered
Unit, labor, any outlet work and its $100 permit on separate lines.
Wall Mount Opener Questions
Will a wall mount opener work with my existing door?
If the door lifts on torsion springs, with a shaft and drums above the header, yes in most cases, subject to wall space beside the shaft. If the springs stretch along the tracks, the door has no shaft for the unit to turn; a conversion to torsion at $400 to $800 or more comes first.
How much side room does a jackshaft opener need?
More than the track alone, which wants 4.5 inches. The exact clearance depends on the unit and on how far your torsion shaft extends past the end bearing plate, so we measure on site. Where the shaft is short it can often be extended; where the wall is blocked we look at the other end.
Is a wall mount opener quieter than a belt drive?
It removes a different noise. A belt drive is the quietest of the rail types. A wall mount has no rail at all, so nothing runs across the ceiling or bolts to the joists under a bedroom floor. What remains is the sound of the door itself on its rollers and hinges.
Can I still open the door by hand in a power cut?
Yes. A jackshaft unit has its own emergency release that frees the shaft from the motor, and we show you how to use it. Battery backup, at $50 to $150 extra, keeps the door running through an outage. Tennessee has no rule requiring it, unlike California from 2019 onward.
Does a wall mount opener need a permit in Murfreesboro?
Fitting the unit on an existing outlet is not among the City permit triggers and the job sits under the $3,000 Home Improvement licence line. A new outlet at the side wall is electrical work: a $100 residential electrical permit at the City Building and Codes office on West Vine Street, pulled by a licensed electrical contractor under the 2017 NEC.
