Belt Drive Garage Door Opener Installation in Murfreesboro, TN
A steel-reinforced rubber belt replaces the chain, so the opener runs quiet enough for a bedroom over the garage. Installed with battery backup and phone control on request.

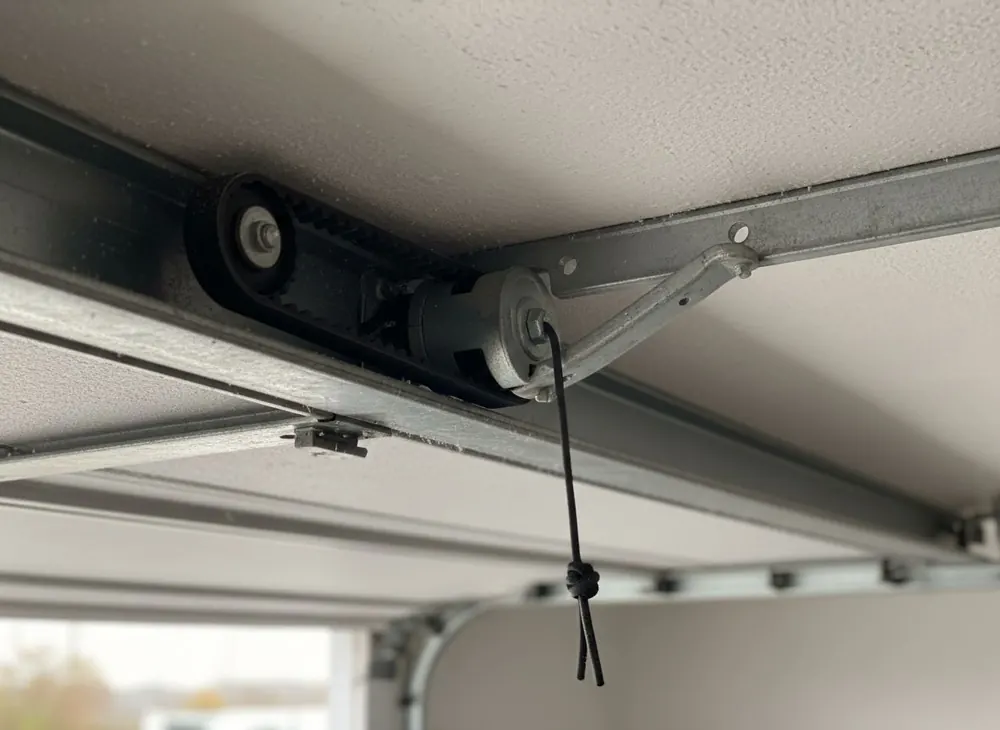

Belt drive garage door opener installation in Murfreesboro, TN is the quiet upgrade for a house where somebody sleeps, works or watches television above the garage. A belt drive opener pulls the trolley with a reinforced rubber belt instead of a steel chain, which is why it is the quietest of the three ceiling-mounted drive types. Installed, a belt drive runs $350 to $850 as of 2026, against $300 to $650 for a chain drive, and the job takes two to six hours.
We fit belt drive units from Genie, Chamberlain and LiftMaster, check the door balance first so the new motor is not lifting a job the springs should be doing, and set the force and travel limits to the current safety standard. If the old unit is simply worn out and noise is not a concern, a straight opener swap may cost less.
Request a Garage Door Repair Quote
Tell us what the door is doing, whether it is a single or a double, and the part of town you are in. Weekday requests get a reply the same working day, and the price is confirmed on site before any work starts.
Where a Belt Drive Earns Its Price
A chain drive does the same lifting. The belt is worth the extra money in three situations we see across Rutherford County.
Bedroom or bonus room over the garage
Two-storey plans in Carters Retreat, Evergreen Farms and River Landing often put a living space directly above the door. A chain rattles the floor joists at 6 am. A belt does not.
Replacing a first-generation chain drive
Openers last 10 to 15 years. Much of the housing in 37128 and 37129 was built around 1999 to 2008, so the original builder-grade chain unit is reaching the end of that window.
Adding battery backup and phone control at the same time
Most current belt drive units ship with a Wi-Fi radio and accept a battery pack, so the quiet upgrade and the smart upgrade happen in one visit.
Belt Drive Garage Door Opener vs Chain
The belt is quieter and costs more, the chain is louder and cheaper, and both are built for the same residential duty.
Noise
The chain drive is the loudest of the drive types and the belt drive the quietest among the ceiling-mounted options. Only a wall-mount jackshaft unit, which has no rail at all, is quieter again.
Price
Chain drive installed: $300 to $650. Belt drive installed: $350 to $850. Unit-only prices overlap heavily by brand: Genie $150 to $600, Chamberlain $150 to $600, LiftMaster $250 to $650.
Durability and duty
The cost guides rate the chain as the most durable drive. In practice both are sold for the same rating, roughly 10,000 cycles, and a 10 to 15 year service life.
From the First Call to a Quiet Door
-
Balance check before anything is unboxed
We pull the release cord and lift the door by hand. If it does not stay put halfway, the springs are tired. Spring work comes first in that case, and we tell you before buying the unit.
-
Choose the unit and the extras
Belt drive, 1/2 HP class, with or without battery backup and Wi-Fi. An 8 ft door needs a rail extension kit, $45 to $100.
-

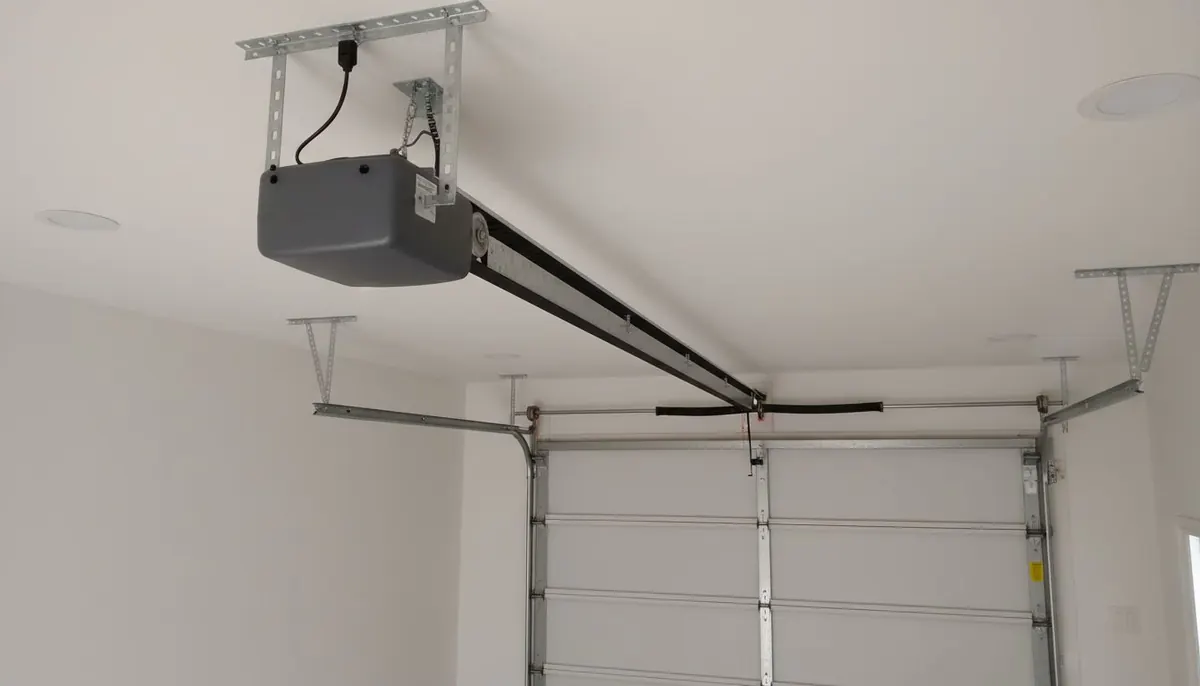

Mount rail, head and sensors
The rail is hung from the header bracket and the ceiling, the motor head is levelled, and the photo eyes go on each side of the opening no higher than 6 inches above the floor.
-
Set limits and force, then test reversal
Force is set to the minimum that moves the door. A 2x4 laid flat in the door path must trigger reversal on contact, and blocking the photo eye must stop and reverse a closing door.
-
Pair remotes, keypad and phone
Remotes and the wall console are programmed, the keypad is coded, and the Wi-Fi app is connected on your phone before we leave.
Battery Backup, Wi-Fi and the Rules Behind Them
Belt drive garage door opener with battery backup
A battery pack beside the motor head runs the door for a limited number of cycles when the power is out, which matters most in the spring and fall storm seasons here. Where it is an add-on, a pack runs $50 to $150. California has required battery backup on every opener installed from July 1, 2019 onward. Tennessee has no equivalent rule, so in Murfreesboro it is a choice, not a code item.
Smartphone apps for each brand
Chamberlain and LiftMaster openers use the myQ platform; Genie uses Aladdin Connect. Both let you open, close and check the door from a phone. Smartphone control adds $100 to $450 to the unit price as of 2026, and a retrofit hub for an existing opener runs $90 to $150. UL 325 requires a visual and audible warning before the door moves on an app command, which is why the light flashes and the head beeps first.
The safety standard every new opener must meet
Every residential opener sold in the United States from January 1, 1993 onward has had to comply with 16 CFR Part 1211. A closing door must start to reverse within 2 seconds of touching an obstruction, and a second system, normally the photo eyes, must reverse it independently. The 2018 International Residential Code, which Murfreesboro enforces, requires openers to be listed to UL 325.
Belt Drive Opener Pricing Around Murfreesboro
Belt drive garage door opener installed: $350 to $850 per unit
The band is the national installed range for belt drives from a 2025 cost guide. A 2026 contractor survey puts the median pro-installed opener of all types at $996.
| Scope | Typical range | What it covers |
|---|---|---|
| Entry belt drive | about $450 installed | 1/2 HP class, basic remotes, no battery. Fine for a detached garage. |
| Mid-range belt drive with Wi-Fi | about $850 installed | DC motor, phone control through myQ or Aladdin Connect. |
| Premium belt drive with battery backup | $950 and up installed | Battery pack included, pro-channel unit, LiftMaster tier. |
What moves the price
- Brand tier: Genie entry, Chamberlain retail mid-range, LiftMaster pro channel.
- Battery backup, built in or added at $50 to $150.
- Wi-Fi and app control, $100 to $450 on the unit price.
- Labor, $150 to $400 per unit, more when the old rail and brackets must come out.
- A new dedicated outlet, which is a separate electrical permit at $100 in the city.
A 16x7 steel door on a 2006 house in 37128 with a bedroom overhead and a grinding chain drive. A mid-range belt drive with Wi-Fi lands near $850 installed; a battery pack is another $50 to $150 if not included. The outlet is on the ceiling and the springs pass the balance test, so the visit runs about three hours.
How We Handle an Opener Install
The door is balanced before the motor goes up
An opener should move a balanced door with little effort. We test that first and fix the springs if they fail rather than letting the new unit mask it.
Both reversal systems are tested in front of you
Contact reversal with a 2x4 and photo-eye reversal with a hand across the beam, before the invoice is written.
Itemised written quote first
Unit, labor, extras and any permit are listed separately before work starts, in line with the Tennessee Attorney General guidance on home repair contracting.
Belt Drive Questions We Hear Most
Is a belt drive really quieter than a chain drive?
Yes. The belt drive is the quietest of the ceiling-mounted drive types and the chain drive is the loudest. The difference is most noticeable through a floor, so it matters most under a bedroom or bonus room.
Can a belt drive lift a heavy insulated double door?
It can, provided the door is balanced. A 16 ft double door weighs 300 to 450 lb, but the springs carry that weight; the opener only overcomes friction. If the door is heavy to lift by hand, the fix is springs, not a bigger motor.
Does a new belt drive opener need a permit in Murfreesboro?
Replacing an opener on an existing outlet is not listed as a permitted item on the City pages we have checked. Running a new dedicated outlet needs a residential electrical permit, $100 as of 2026, pulled by a licensed electrician under the 2017 NEC.
Will the phone app work with my existing remotes and keypad?
The new opener comes with its own remotes, and we program your existing keypad and remotes where they use a compatible radio format. Older remotes from a different brand usually will not pair. The app runs alongside the remotes rather than replacing them.
Other Opener Work We Do
Chain, screw and belt openers compared covers every drive type and brand tier if you have not settled on a belt.
A jackshaft unit beside the torsion shaft is the quietest option of all and frees the ceiling entirely.
Fixing the opener you already have is the cheaper path when the unit is under 10 years old.
