Garage Door Roller Replacement in Murfreesboro, TN
Grinding, squealing or a door that shudders in the track usually means worn rollers or tired hinges. We swap the full set for sealed nylon and reset the door in one visit.

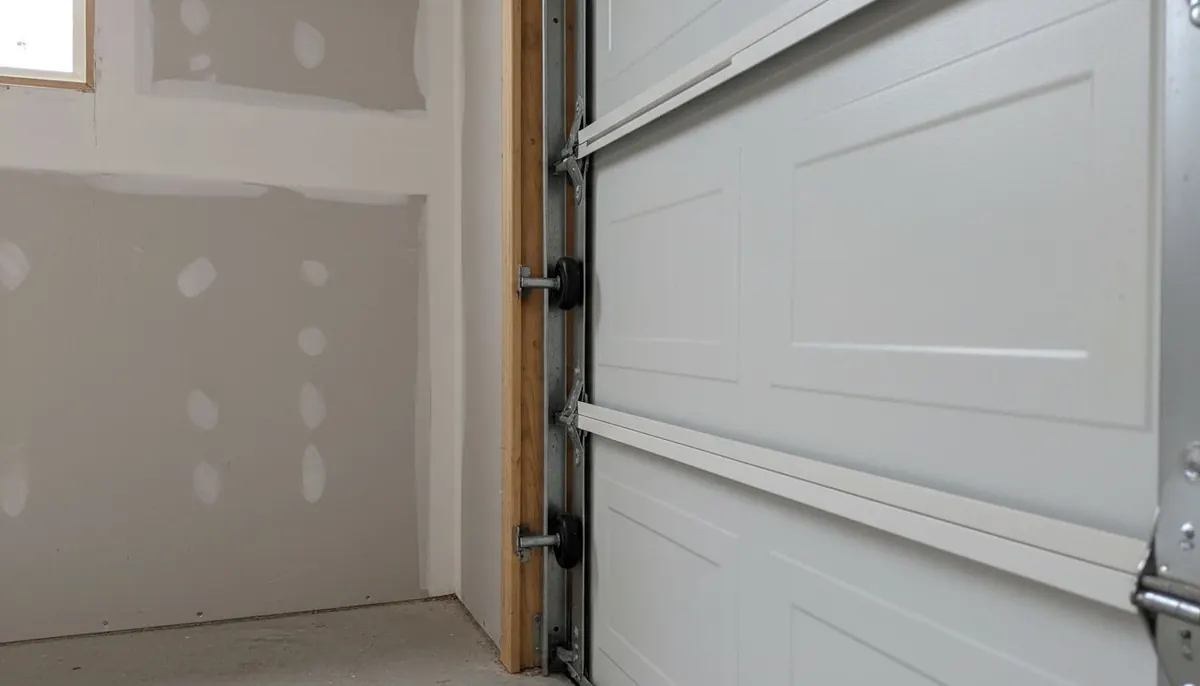

Garage door roller replacement in Murfreesboro, TN swaps the small wheels that carry each section through the track. A standard 7 ft door with four sections rides on 10 rollers, and when the bearings dry out or the wheel wears flat, the door grinds, chatters and pulls harder on the opener than it should. We replace the whole set with sealed-bearing nylon rollers, check every hinge the rollers bolt through, and rebalance the door before we leave.
Most roller calls are a noise complaint, not a breakdown. Left alone, a seized roller chews the track and strains the opener, which is why a tune-up visit often turns into a roller job. A quote follows a look at the door.
Request a Garage Door Repair Quote
Tell us what the door is doing, whether it is a single or a double, and the part of town you are in. Weekday requests get a reply the same working day, and the price is confirmed on site before any work starts.
Roller Work We Do on Sectional Doors
Full Set Replacement
All 10 rollers on a 7 ft door come out and sealed nylon goes in. Replacing one worn roller and leaving nine old ones puts the new wheel on a door that still drags.
Hinge Replacement Alongside
Each roller stem sits in a hinge or bracket. If the hinge knuckle is worn oval or cracked, the new roller cannot run true. Hinges run $5 to $40 each in parts.
Track Cleaning and Alignment Check
Rust flakes and old grease in the 2 in residential track wear a new roller fast. We clean the channel and confirm the gap to the door.
Balance and Force Reset
Smoother rollers change the load on the opener. We check spring balance and reset force and travel so the door does not slam or stall.
Garage Door Hinge and Roller Replacement: Why the Two Go Together
Rollers do not bolt to the door. They slide into hinges and brackets, and a worn hinge ruins a new roller as surely as a worn roller ruins a hinge.
Hinge numbers #1 through #5
Hinges are stamped with a number that tells you where they go. Every center hinge is a #1. Edge hinges count upward from the bottom section joint, because the roller offset grows with each one so the sections stay aligned as the door bends around the curved track.
The bottom bracket is not a hinge
The lowest roller sits in the bottom bracket, which is also where the lift cable attaches. With the door closed, that bracket carries the full spring tension. We never remove it without unloading the springs.
Nylon or steel

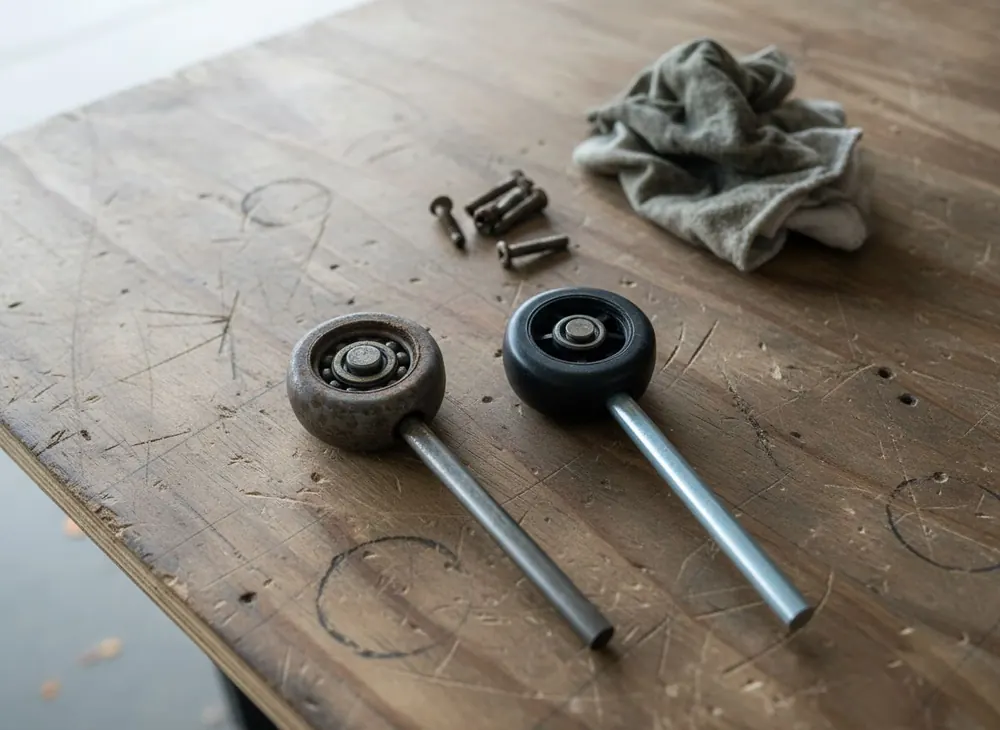

Nylon rollers are quieter; steel rollers are tougher against a bent track but louder on every cycle. What matters more is whether the bearings are sealed. We fit sealed nylon as the default.
Why the opener suffers first
Dragging rollers add load the opener was not sized for, so the drive gear wears and the force setting creeps up. New rollers protect an opener that has years left in it.
A Roller Swap, Step by Step
-
Listen, then watch a full cycle
We run the door by opener and by hand to separate roller wear from opener faults.
-
Disconnect the opener and secure the door
The release cord disengages the trolley and the door is clamped in the track so nothing moves while a hinge is open.
-
Swap rollers one hinge at a time, bottom bracket last
Each hinge is loosened, the roller swapped, and the hinge re-torqued before the next. Bottom rollers are handled only with spring tension relieved.
-
Clean the track, lubricate the right points
Track gets wiped, not greased. Hinges, bearings and the spring get a light coat.
-
Rebalance and reset the opener
The door is lifted to waist height by hand and should stay put. Then the opener is reconnected and force and travel are checked against the 2 second reversal rule.
Bearings, Cycle Ratings and What 56 Inches of Rain Does to Steel
Roller cycle ratings, in plain numbers
A cycle is one full open and close. Plastic rollers with no bearings are rated roughly 5,000 to 10,000 cycles. A 10-bearing nylon roller is rated 10,000 to 15,000, a 13-bearing nylon roller 20,000, and premium sealed nylon 50,000 to 100,000. Four openings a day is about 1,460 cycles a year. In service, standard rollers last 5 to 7 years and sealed nylon 10 or more.
Humidity and rust in Rutherford County garages
Murfreesboro gets 55.92 inches of rain a year and about 4.4 muggy months from mid-May to late September. An attached garage breathes that air, and an open roller bearing wicks it in. Rust on the bottom section, the bottom brackets and the lowest hinges is common on doors from the early 2000s, which is most of the stock here: 55.6 percent of city homes were built in 2000 or later. Sealed bearings are the sensible spec for this climate.
Track radius and why a roller pops out
Residential track is 2 in wide, with a 12 in or 15 in radius at the curve. A roller with a worn wheel has less of its diameter inside the channel, and at the radius it can jump out. Once one roller leaves the track the section twists and you have an off-track door that costs more than the roller set would have.
Roller Replacement Pricing in Murfreesboro
Roller replacement: $90 to $230 for a partial set, $300 to $500 for a full premium nylon set installed
These are the national bands published in 2025 and 2026 cost guides; no Murfreesboro-specific survey exists. Your written quote follows an on-site look at the door.
| Scope | Typical range | What it covers |
|---|---|---|
| Partial roller replacement | $90 to $230 | A few failed rollers on a door that is otherwise sound. Includes the $50 to $75 trip fee band. |
| Full set, 10 premium nylon rollers | $300 to $500 | Sealed-bearing nylon on every hinge, track cleaned, door rebalanced. |
| Full set plus hinges | Add $5 to $40 per hinge | Worn or cracked hinges replaced at the same time; we count them on site. |
What moves the price
- Roller grade: plastic, 10-bearing nylon, 13-bearing nylon or premium sealed nylon.
- How many hinges are worn oval or cracked.
- Door balance: a balancing adjustment runs $50 to $150 if the springs are weak.
- Hourly labor of $75 to $150 if the job runs past a standard swap.
A 16 ft steel door in a 2006 Blackman house grinds on every cycle. All 10 rollers are original steel with open bearings and two edge hinges are worn. A full premium nylon set at $300 to $500 plus two hinges at $5 to $40 each lands between roughly $310 and $580 as of 2026, done in one visit with the door rebalanced.
What You Get From a Roller Call With Us
The whole set, never one wheel
We quote the full roller count and explain why a single replacement does not fix the noise.
Hinges checked by number
Every hinge is inspected and any replacement matched to its stamped position so the sections track true.
Springs and opener left in balance
Every roller job ends with a hand-balance test and an opener force check.
Roller and Hinge Questions
How many rollers does my garage door have?
A standard 7 ft tall door with four sections uses 10 rollers: two on each section edge plus two in the bottom brackets. Taller doors with more sections carry more, and we count them on site.
Are nylon rollers really quieter than steel?
Yes. Nylon on steel track makes less noise than steel on steel. The bigger factor for life is the bearing: a sealed bearing keeps grit and humidity out, which is what makes sealed nylon last 10 or more years against 5 to 7 for a standard roller.
Can I replace garage door rollers myself?
The eight rollers in the hinges can be changed by a careful homeowner with the door clamped and the opener disconnected. The two bottom rollers cannot be done safely that way: the bottom bracket is attached to the lift cable and sits under full spring tension when the door is closed. Removing it without unloading the springs can release that tension violently.
What does a grinding garage door mean?
Grinding on a sectional door is usually worn rollers, dry bearings or friction in the track. Squealing is more often a lubrication problem. Grinding from the motor head rather than the door is a fault inside the opener.
Should I grease the track to stop the noise?
No. Grease in the track holds grit and rust flakes against the roller wheel and wears it faster. Lubricant belongs on the hinges, the roller bearings and the spring, in a light coat. If a dry, clean track still grinds, the rollers are due.
Nearby Repairs on the Same Door
Bent or loose track is the usual reason a new roller set still binds.
Putting a jumped door back on is what a popped roller becomes if the opener is run again.
Fresh springs are quoted on the same trip when the balance test shows the door is heavy.
Door Stuck? Tell Us What It Is Doing
A door that will not lift, hangs crooked, or stops a few inches off the floor is usually one failed part. Call during posted hours or send the symptoms and we will come out, name the part, and put an itemized price in front of you before we touch it.
