Insulated Garage Doors in Murfreesboro, TN
A two or three layer steel door with foam bonded inside keeps a Murfreesboro garage closer to house temperature and runs quieter.
Insulated garage doors in Murfreesboro, TN are steel sectional doors with a foam core between the skins, and they cost $1,100 to $4,200 installed as of 2026, against $700 to $2,500 for the full range of steel doors from bare to insulated. The core is either polyurethane injected between two steel skins or a polystyrene board behind one skin. The first insulates better per inch and makes a stiffer, quieter section. The second costs less and still beats a single skin.
The case for one here is the attached garage sharing a wall, and often a ceiling, with living space in a hot season that averages 89 F in July. We fit insulated doors as a full replacement or as the upgrade when a storm or a vehicle has finished off the old one.
Request a Garage Door Repair Quote
Tell us what the door is doing, whether it is a single or a double, and the part of town you are in. Weekday requests get a reply the same working day, and the price is confirmed on site before any work starts.
What We Install When You Ask for an Insulated Door
Two-Layer Steel and Polystyrene
One steel skin with a rigid polystyrene board behind it, usually faced with a vinyl backer. Clopay lines in this class run R 6.3 to 6.5. It is the lowest-cost step up from a bare single-skin door.
Three-Layer Steel, Foam, Steel

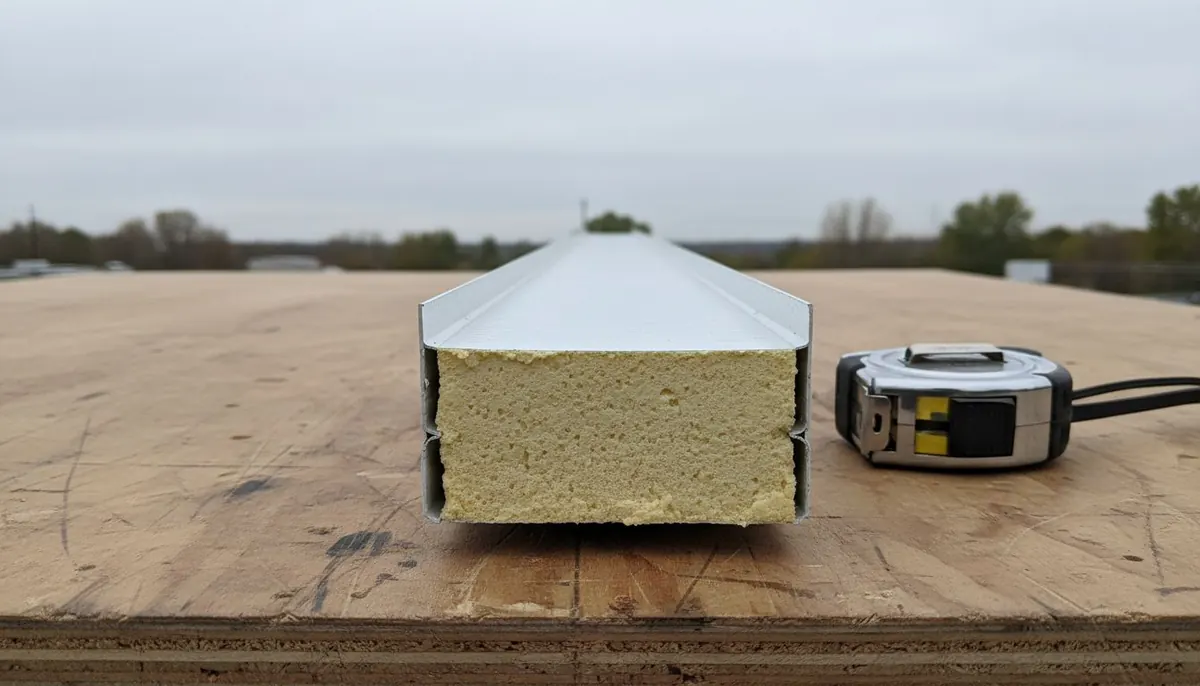

Two steel skins with polyurethane foam injected between them. The foam bonds to both skins, so the section is stiffer and deadens sound. Clopay publishes R 18.4 for its three-layer Intellicore construction. The weight goes up, which is why the springs are quoted with the door.
Five-Layer Composite Faced Doors
A steel and polyurethane core with a moulded composite overlay on the face, built to read as wood. Clopay rates its Canyon Ridge line at R 20.4, the highest figure in the research we work from. These are sold as carriage house doors and priced accordingly.
Insulated Garage Door R Value, Explained in Plain Terms
R-value measures resistance to heat flow. Residential garage doors span roughly R 0 to R 20, and the construction method decides where a door lands.
Polyurethane versus polystyrene
Polyurethane is injected as a liquid, expands to fill the section and bonds to the skins. Polystyrene is a pre-cut rigid board that can leave gaps at the edges, which is how a three-layer door reaches R 18.4 while a two-layer door of similar depth sits near 6.5.
Steel gauge and what the number means
Door skins are described by gauge, and a lower number is thicker steel. Residential doors commonly use 24, 25, 26 or 27 gauge skins. Gauge affects dent resistance, not insulation. DASMA publishes a gauge chart in its Technical Data Sheet 154.
Sizes the insulated lines come in
Standard singles are 8 by 7 and 9 by 7 feet. Doubles are 16 by 7, with 18 by 7 and 18 by 8 for wider or taller openings. A 16 foot double weighs 300 to 450 pounds and often runs on two torsion springs rather than one.
Measuring, Ordering and Hanging a Heavier Door
-
Measure the opening and the room around it
Width, height, headroom, side room each side and the depth back to the opener, plus the slab, since a fresh bottom seal shows up every dip in the floor.
-
Pick construction, colour and windows
Two, three or five layer, panel style, colour, and whether a window row goes in the top section. Windows add weight and cost. We match existing panel style and colour unless you ask for a change.
-
Written quote, then the order
The quote itemises the door, the spring set sized to it, haul-away and any opener work, and states whether the job crosses the $3,000 line where Tennessee requires a Home Improvement licence in Rutherford County.
-
Remove, hang, balance, test
The old door and springs come down, new track and sections go up, the torsion springs are wound to the door weight, and the door is balanced to hold at mid-travel. The opener force is reset and the reversal test is run before we leave.
Insulated Garage Door vs Non Insulated in a Murfreesboro Summer
What the climate does to an attached garage
The hot season runs about 3.8 months, May 26 to September 19, with a July average high of 89 F and 25 muggy-or-worse days in that month alone. Heat passes through a single steel sheet into a garage that shares a wall with the kitchen or a ceiling with a bonus room. In the cold season, November 28 to February 26, with a January average low of 31 F, the same sheet lets the garage drop to freezing overnight. An insulated section does not make the garage conditioned space, but it narrows the swing.
Noise, stiffness and dents
A foam-filled section does not drum when the door runs, so a three-layer door on a belt drive opener is noticeably quieter under a bedroom than a bare door on a chain. Bonded foam also stiffens the section, which matters on a 16 or 18 foot span under wind load. Murfreesboro sets its design wind speed at 115 mph in the ordinance adopting the 2018 International Residential Code, which requires garage doors tested to ASTM E330 or ANSI/DASMA 108.
The weight penalty and how springs absorb it
The honest downside is weight. An insulated double can need springs in the $250 to $400 band rather than the $150 to $350 pair a standard door takes. A 1/2 horsepower opener, the typical residential unit, lifts most insulated doors when the springs are balanced. If the existing opener is 10 to 15 years old, replacing it with the door is cheaper than a second trip, and we say so on the quote.
Insulated Garage Door Cost in Murfreesboro, as of 2026
Insulated garage door installed: $1,100 to $4,200 per door
The range is from national 2026 cost guides; no Murfreesboro-specific survey exists. The final figure follows an on-site measure and a written, itemised quote.
| Scope | Typical range | What it covers |
|---|---|---|
| Single insulated steel, 8 by 7 or 9 by 7 | $1,200 to $2,500 installed | Two-layer polystyrene at the low end, three-layer polyurethane at the top. |
| Double insulated steel, 16 by 7 | $1,800 to $3,500 installed | Includes a spring set sized to the heavier door. |
| Composite-faced or full-view insulated | $3,500 to $8,000 or more installed | Five-layer carriage house or glass-panel aluminium lines. |
What moves the price
- Layer count: two-layer polystyrene costs the least, three-layer polyurethane more, five-layer composite the most.
- Windows and specialty glazing add $800 to $2,500 per door.
- Old door removal and haul-away runs $50 to $250 per door.
- Opener replacement at the same visit, $300 to $900 installed, if the existing unit is near end of life.
A 16 by 7 two-layer polystyrene door replacing a dented single-skin door: door and install in the $1,800 to $3,500 band, haul-away $50 to $250, springs sized to the new weight included. The total can cross $3,000, so the quote notes the Home Improvement licence line.
Why Homeowners Ask Us for Insulated Doors
Springs quoted with the door, not after it
Every insulated door quote lists the spring set by weight rating.
R-values quoted from the maker, not rounded up
We quote the published figure for the exact line you are buying and say when a number has not been confirmed.
Style and colour matched to the street
We match the existing panel pattern and colour by default and suggest you check HOA guidelines before changing either.
Insulation Questions Before You Order
What R value do I actually need on a garage door in Murfreesboro?
For an attached garage with living space above or beside it, a three-layer polyurethane door in the R 18 range is the step that changes how the room feels. A two-layer door at R 6.3 to 6.5 is the middle choice when the garage shares only one wall.
Will my existing opener lift an insulated door?
Usually, if the springs are correctly sized, because the springs carry the door weight and the opener only overcomes friction. The exception is a unit already 10 to 15 years old or with a worn drive. We test it after balancing the new door.
Polyurethane or polystyrene: which should I pick?
Polyurethane if the garage is attached and you want the quieter, stiffer door; it bonds to both skins and insulates better per inch, reaching about R 18 in a three-layer door. Polystyrene if cost leads and the garage is detached; it sits near R 6.5.
Does replacing a garage door need a permit in Murfreesboro?
Some garage door work in Murfreesboro requires a City permit. Replacement is not on the City list of permit-exempt work, so we confirm with Building and Codes before any structural or electrical change. Separately, a job over $3,000 in Rutherford County needs a Tennessee Home Improvement licence, checkable at verify.tn.gov.
Door Work That Pairs With an Insulated Upgrade
The full replacement page covers sizes, brands, haul-away and the permit question for any new door.
Springs sized to a heavier door are the one part an insulated upgrade always changes.
A quiet belt drive is the natural match for a foam-filled door under a bedroom.
Door Stuck? Tell Us What It Is Doing
A door that will not lift, hangs crooked, or stops a few inches off the floor is usually one failed part. Call during posted hours or send the symptoms and we will come out, name the part, and put an itemized price in front of you before we touch it.
